Casio AE-1200 "Royale" Strap Guide: Size, Fit & Replacement (2026)

Whether you are replacing a worn-out factory strap or just want the watch to look better, the Casio AE-1200 makes it needlessly confusing. The spec sheets say 18mm. The stock strap clearly looks wider than 18mm. And every strap you order that says "18mm" arrives looking too skinny on the watch.

There is a simple reason for that, and once you understand it the whole problem goes away.

I'm Luke, founder of JellyLab Watches. I make watch modding videos for around 150,000 followers on YouTube, and I've completed close to 4,000 mods for customers in over 48 countries. I've had more AE-1200s apart and back together than almost anyone, and straps are the single most common question I get. This guide covers the exact measurements, the three ways people solve the fit problem, a step-by-step strap change that takes about two minutes, and what to do if your factory strap has given up entirely.

The short answer

The Casio AE-1200 takes an 18mm strap. It uses standard spring bars and standard 18mm lug width, with no proprietary fitting of any kind. Any 18mm strap will physically attach.

But the factory resin strap is flared. It measures 18mm where it meets the spring bar, then immediately widens to roughly 24mm as it passes the lugs and meets the case. That flare is why the stock watch looks balanced and why a straight 18mm strap does not.

AE-1200 strap specs at a glance

Lug width	18mm
Resin strap width at the case	Roughly 24 to 25mm, depending on where you measure
Case width	42.1mm
Case length (lug to lug)	45mm
Case thickness	12.5mm
Spring bars	Standard 18mm
Time to change	2 to 5 minutes
Difficulty	Beginner. Easiest mod there is
Effect on water resistance	None. The case is never opened

Case dimensions and water resistance are Casio's published figures for the AE-1200WH. Worth noting that Casio does not actually publish a band or lug width for this watch anywhere, which is a large part of why there is so much confusion about it. The 18mm figure comes from Casio's genuine replacement parts, which are catalogued as 18mm, and it matches every caliper measurement I have ever taken.

Replacing a broken or worn factory strap? Any 18mm strap will fit and the swap takes about two minutes. Skip ahead to strap replacement, or read on for what to buy.

Why an 18mm strap looks wrong on a 42mm watch

The AE-1200 case is 42.1mm wide. The gap between the lugs is 18mm. That is a big case sitting on a narrow attachment point, and it is a deliberate Casio design choice, not an accident.

Casio hides it by flaring the resin strap. The strap starts at 18mm inside the lugs, then fans out to roughly 24mm the moment it clears them, so from any normal viewing angle the strap looks like it is the full width of the case. Your eye reads a continuous line from case to strap.

Put a straight 18mm strap on and that line breaks. You get a wide case perched on a narrow band, and it reads as an afterthought. It is the single most common complaint I see from people who have just restrapped their Royale, and it usually shows up as some version of "it fits fine, but it looks off and I can't work out why."

Now you know why.

Your three options, honestly compared

There are exactly three ways to put a new strap on an AE-1200. All three work. They are not equally good, and I want to be straight with you about the trade-offs rather than just pointing you at the products I sell.

Option 1: A straight 18mm strap

Buy any 18mm strap, fit it, done. This is the cheapest and most flexible route because 18mm is a common size with enormous selection.

Upside: Cheap, available everywhere, no extra parts, fully reversible.

Downside: The proportion problem above. On a 42mm case, a straight 18mm band looks narrow. Some people genuinely like the slim look, and on smaller wrists it can work well. Most people do not like it and end up changing again within a month.

Option 2: Lug adapters

Adapters are small pieces that sit in the lugs and convert the 18mm gap out to 20mm or 22mm, so you can run a wider strap. Metal versions are widely sold on eBay and Etsy, and there are free 3D-printable files floating around if you own a printer.

Upside: Restores the proportion, and opens up the much larger 20mm and 22mm strap market.

Downsides, and these are real:

• They add height. The adapter sits between the case and the strap, which lifts the watch off your wrist. On an already 12.5mm-thick case, this is noticeable.
• They behave badly with one-piece straps. This is the big one. With a NATO, Zulu, or MN strap, the material passes underneath the watch, and that pass of fabric pulls spring-bar adapters down toward your wrist. The watch ends up sitting at an angle with the adapters splayed. Loop-style "fixed lug" adapters solve this, but they are niche and mostly 3D-printed one-offs.
• More parts, more failure points. Two extra components plus their own spring bars, on a watch you may well be wearing to the gym.

If you already own a strap you love in 20mm or 22mm, adapters are a perfectly sensible way to use it. I would not buy adapters as a default first move.

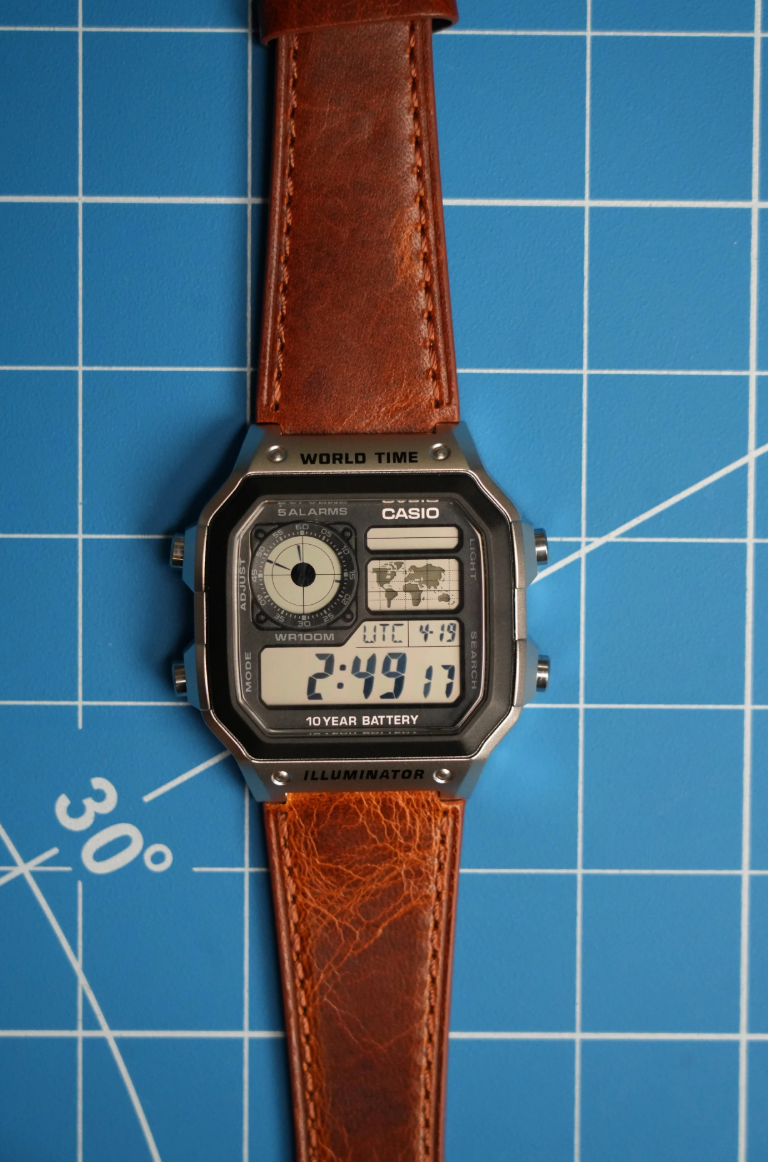

Option 3: A flared strap

A flared strap is built the way the factory strap is built: 18mm at the lugs, widening out to meet the case. No adapters, no extra height, no compromise on proportion.

Upside: It is the only option that solves the problem at the source. Correct proportion, factory-correct fit, single part, sits flat.

Downside: Smaller selection, because it has to be cut specifically for this watch family. You cannot walk into a generic strap shop and find one.

This is the whole reason I only stock flared straps. The rubber straps and leather straps I sell are all cut with the flare, so they drop straight on and look like the watch came that way. Every one ships with a spring bar tool, because there is no point selling someone a strap and leaving them to go and find their own tools.

Option	Proportion	Extra height	Works with NATO	Selection
Straight 18mm	Narrow	None	Yes	Huge
Adapters + 20/22mm	Good	Yes	Poorly	Large
Flared	Correct	None	N/A	Limited

How to change the strap on a Casio AE-1200

This is the easiest thing you will ever do to this watch. It takes about two minutes once you have done it once, it requires one tool, and unlike a filter mod or a metal case swap, you never open the case. That means the factory 100m water resistance is completely untouched.

If you want to change how your Royale looks and you are nervous about taking a watch apart, start here. It is fully reversible, there is nothing to lose, and it changes the character of the watch more than almost anything else you can do for the money.

What you need

• A spring bar tool. One end is a fork, the other is a fine point. This is the only essential item, and one comes free in the box with every JellyLab strap.
• A soft surface. A microfibre cloth or a cutting mat. Spring bars love to launch themselves across a room, and a cloth catches them.
• Optional: a spare set of 18mm spring bars. Cheap insurance. If you lose one, you are not stuck.

Step 1: Lay the watch face down

Put the watch face down on your cloth. You are working from the back, which gives you a clear view of where the spring bars sit and keeps the crystal off the bench.

Step 2: Find the spring bar

Look into the gap between the strap and the inside face of the lug. You are looking for the shoulder of the spring bar, the small step where the sprung tip meets the body of the bar. That step is what your tool fork hooks onto.

Step 3: Hook and compress

Slide the forked end of the tool into the gap and seat it on the spring bar shoulder. Push the bar toward the centre of the watch to compress the spring. You are not levering against the case here, you are pushing sideways along the bar. Use steady pressure rather than force.

Step 4: Lift the strap out

While holding the bar compressed, tilt the strap up and away from the lug. One end of the bar will clear the lug hole and the whole strap will come free. Keep hold of the spring bar so it does not fire off. Repeat on the other side.

Step 5: Load the new strap

Feed a spring bar through the channel in the new strap so it sits centred with an equal amount of tip showing at each end. If you are reusing the original bars, give them a quick check first. If either one feels gritty, sticky, or does not spring back crisply, replace it. A tired spring bar is how watches end up on the pavement.

Step 6: Seat one side

Angle the strap into the lugs and drop one tip of the bar into its lug hole. Let it sit there and take the weight. This gives you a pivot to work against for the tricky side.

Step 7: Compress and drop in the second side

Put the tool fork on the free end of the bar, compress it, and slide the strap into position until the tip lines up with the second lug hole. Ease the pressure off slowly and you should feel and hear it click home.

Step 8: Test it properly

This step matters. Give the strap a firm tug away from the case, on both ends. If either bar was not fully seated, it will let go now while you are holding it rather than later when you are not. If it holds, you are finished.

Repeat for the other half of the strap and you are done. First time, expect five minutes. After that it is a two-minute job, and being able to swap straps in two minutes is genuinely why people end up with three or four of them.

Running a NATO on the AE-1200

NATO straps are the most requested and the most misunderstood option on this watch, so it is worth its own section.

An 18mm NATO fits directly, with no adapters needed. The proportion issue applies here too, and more visibly than with a two-piece strap, because a NATO's straight edges make the width mismatch obvious against a 42mm case.

The thing to know if you are considering adapters for NATO use: ordinary spring-bar adapters and one-piece straps do not get along. The band that passes underneath the case pulls the adapters down and inward, and the watch ends up sitting high and skewed. If you want a NATO with a wider look, you want loop-style fixed-lug adapters rather than the common spring-bar type, and those are much harder to find.

One useful trick if you have a double-pass NATO that is adding too much bulk: snip off the second keeper pass with scissors to convert it to a single-pass strap, then seal the cut edge with a lighter so it does not fray. Takes thirty seconds and removes a full layer of fabric from under the watch.

Which material should you pick?

Rubber is the default for a reason, and it is the natural replacement if your factory resin strap has given up. It is what the watch was designed around, it handles water and sweat without complaint, it is the lightest option, and it keeps the watch feeling like the tough little tool watch it is. If you want to change the look of your Royale for the smallest possible outlay, a coloured rubber strap is the highest-impact twenty dollars you can spend on it. I stock them in seven colours, all cut with the flare, so a replacement can also be an upgrade.

Leather completely changes the register of the watch. A $30 digital Casio on good leather stops reading as a beater and starts reading as deliberate, and it is the single most common "I can't believe that's the same watch" reaction I get. Leather is not the choice for swimming or for daily gym use. It is the choice for wearing the watch somewhere it would not normally go. I stock it in saddle brown and black.

Nylon and NATO are cheap, hard-wearing, and endlessly variable, with the proportion caveat above.

The steel bracelet comes factory-fitted on the AE-1200WHD. It looks great and it is a genuine pain to size. The folded links are stiff, the pins nearest the clasp are notoriously stubborn, and plenty of people give up and pay a jeweller. If you own a WHD and the bracelet is fighting you, know that a strap swap is a completely legitimate answer, and a lot of people are much happier with the watch afterwards.

AE-1200 strap replacement: when the factory strap gives up

If you are here because your resin strap has snapped, the short version is that it is fully replaceable, it takes about two minutes, and you do not need a new watch. The lugs take ordinary 18mm spring bars. Everything above applies to you.

A broken resin band is not bad luck, it is the expected end of a consumable part, and Casio says so themselves. Their support guidance notes that resin can harden, crack and break down over time from sweat, moisture, humidity and sunlight, and advises replacing the band as soon as you see hardening, stickiness or surface cracking rather than waiting for it to snap. Two to four years of daily wear is typical, though AE-1200 owners report anywhere from one year to seven.

Worth knowing separately: the keeper usually fails before the strap does. That is the small resin loop holding the strap tail down. It is a common AE-1200 complaint and Casio does not appear to sell it on its own, so a flapping tail is reason enough to move to a new band.

You can go back to a genuine Casio resin band through watch parts specialists, but expect to hunt for it. Genuine AE-1200 bands are persistently hard to find in stock and marketplace prices often creep close to the cost of the whole watch. Most people go aftermarket instead. One warning if you do: the two or three dollar resin clones look close in photos and feel nothing like the original in the hand.

Last thing, and I say it because it comes up constantly. A common response to a snapped Casio strap is to bin the watch and buy another, because a replacement can cost nearly what a new watch costs. That maths sort of works on a fifteen dollar Casio. It does not work on a Royale you have owned for years, and it definitely does not work if you have already put a filter mod or a metal case into it. A strap is a two-minute swap on a movement rated for a ten year battery, and it is also your chance to end up with a better-looking watch than you started with.

Troubleshooting

The spring bar will not click into the second lug hole

Nine times out of ten the bar is not centred in the strap channel, so one tip has more travel than the other. Pull it out, centre it so an equal amount of tip shows on each side, and try again.

The spring bar fired across the room

It happens to everyone. Work over a cloth or a light-coloured surface next time. This is why a cheap spare set of 18mm spring bars is worth having in a drawer.

The new strap looks too narrow

You have a straight 18mm strap rather than a flared one. This is not a fitting error, the strap is on correctly, it is the proportion issue from earlier in this guide. Your options are to live with the slim look, add adapters, or switch to a flared strap.

The strap sits proud and the watch rocks on my wrist

Classic adapter symptom, especially with a one-piece strap underneath. Either move to a two-piece strap with the adapters, or drop the adapters and go flared.

I scratched the lug while levering

Work from the back of the watch rather than the side, and keep the tool fork on the spring bar shoulder instead of resting it against the case. On the resin models a light scuff will usually buff out with a soft cloth.

AE-1200 strap FAQ

What size strap does the Casio AE-1200 take?

18mm. That is the lug width and the size of spring bar it uses. The factory resin strap then flares out to roughly 24mm where it meets the case, which is why the stock strap looks wider than 18mm.

Do I need an adapter for the AE-1200?

No. An 18mm strap fits directly with no adapter. People use adapters to fix the proportion, not because the watch requires them. A flared strap solves the same problem without adding height.

Will an 18mm NATO fit?

Yes, directly and without adapters. Just be aware that the width mismatch against a 42mm case is more visible on a NATO than on a two-piece strap.

Does changing the strap affect the 100m water resistance?

No. You never open the case back, so the seal is untouched. This is the one AE-1200 mod that leaves water resistance completely intact. Filter mods and case swaps are a different story, and I cover that in those guides.

Does the AE-1200WHD steel bracelet version use the same 18mm lugs?

Yes. Same case, same 18mm lug width. The WHD just ships on a steel bracelet instead of resin, and you can swap it for any 18mm strap.

Can Casio AE-1200 straps be replaced?

Yes. The lugs are drilled for standard 18mm spring bars, so any 18mm strap will fit and the swap takes about two minutes with a single tool. There is nothing glued, riveted or proprietary about the factory strap.

My AE-1200 strap broke. Do I need a new watch?

No, and please do not buy one. The resin band is a consumable part and the movement inside is rated for a ten year battery. A replacement strap costs a fraction of a new watch, fits in two minutes, and gives you the chance to change the look of the watch while you are at it.

How long does the factory resin strap last?

Two to four years of daily wear is typical, with owners reporting anywhere from about one year to seven. Sweat, humidity and sunlight are what shorten it. Casio's own guidance is to replace the band as soon as you see hardening, stickiness, cracking or splitting, rather than waiting for it to snap.

Can I get the original Casio strap as a replacement?

You can, through watch parts specialists, but be careful which one you order and expect to hunt for it. Every band variant has its own part number, so the resin strap, the steel bracelet on the WHD and the cloth band on the WHB are all different parts. Look up the part number against your exact model reference rather than searching "AE-1200 strap." Genuine bands are also persistently hard to find in stock, and marketplace prices for them often creep close to the cost of the whole watch, which is worth weighing before you order.

Can I use quick-release spring bars?

Yes, and they are a nice upgrade if you plan to change straps often. The lugs are drilled for ordinary 18mm bars, so quick-release versions drop straight in.
