Casio AE-1200 "Royale" Metal Case Swap: Step-by-Step Guide (2026)

The Casio AE-1200 metal case swap replaces the factory resin case with a full metal one, transforming the watch's weight and feel while keeping the original module, faceplate, and backplate. It uses the exact same easy disassembly as any AE-1200 mod: four screws, no glue, no soldering. The keys to a clean result are installing the included water-resistance O-ring in the new case and being obsessive about dust before you close it up.

By Luke, founder of JellyLab Watches. I make watch modding videos for 150,000 followers on YouTube and share builds on Instagram. I've completed literally thousands of mods, close to 4,000 at this point, for customers in over 48 countries. Published July 2026.

At a glance:

Time required	About 30 minutes for a first swap
Difficulty	Beginner. Four screws, no glue, no soldering.
Cost	Base watch + $75 metal case
Reversible?	Yes, the factory case goes back on the same way

Why Swap to a Metal Case?

The AE-1200's module is famously great; the factory resin case is where the watch feels cheap. The metal case fixes exactly that, and nothing else about the watch changes:

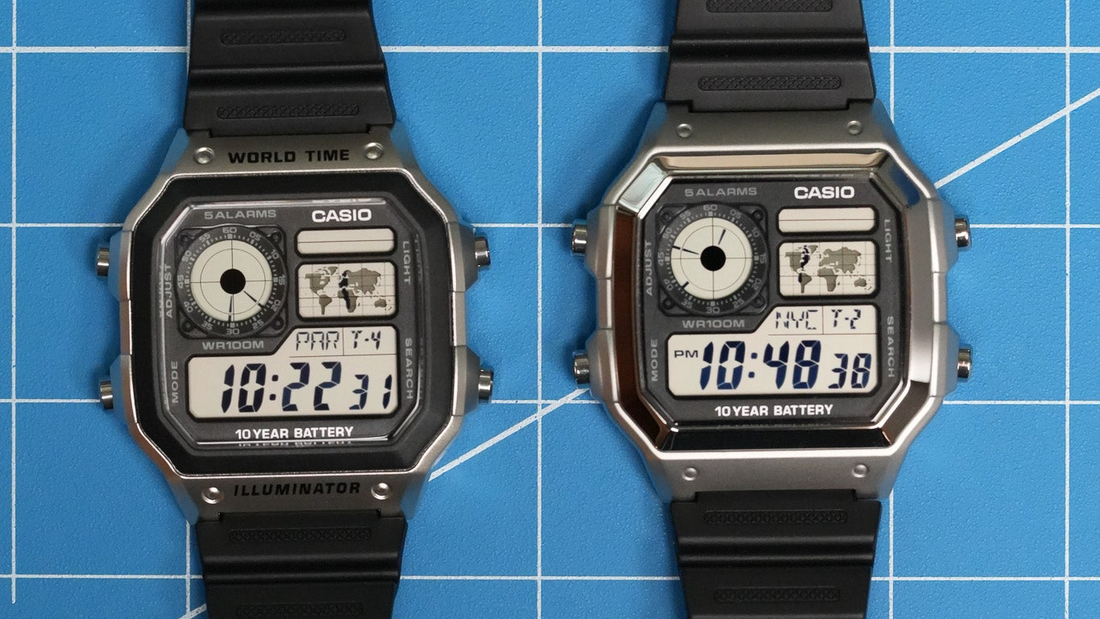

	Factory resin case	Full metal case
Weight	Light, plasticky feel	5x heavier (the case alone is 1.8 oz)
Construction	Resin	Full metal, polished or matte
Glass	Casio's plasticky stock glass	Improved genuine glass, higher clarity
Button pushers	Plastic	Metal
Band	Stock band	Fits the original band and other 18mm bands

The first thing everyone does when they pick one up is go "oh," because the heft completely changes how the watch reads on the wrist. If you've already done a filter mod, this is the natural next upgrade, and the disassembly below will feel familiar.

What You'll Need

• A base watch - any of the common AE-1200 variants works. If you're starting from scratch, the variant list in my filter mod guide covers them.
• The metal case - I sell a full metal case for the AE-1200 in polished and matte. It ships with the water-resistance O-ring and five replacement screws, which matters below. You reuse your factory backplate, so that's not included.
• Small Phillips head screwdriver
• Tweezers - for the button levers during reassembly
• Dust removal putty - same as in the filter guide, this is the difference between a clean build and visible specks under brand new glass
• A soft cloth and a strong light source

Notice what's missing: no tape, no scissors, no adhesive of any kind. The case swap is pure disassembly and reassembly.

How to Do the AE-1200 Metal Case Swap (Step by Step)

Step 1: Lay the watch face down

Set the watch face down on your soft cloth so you're looking at the caseback.

Step 2: Remove the 4 back screws and the backplate

Place the screws in a small tray. You will reuse the backplate at the end, but not these screws: the factory screws do not fit the metal case, which is why the metal case comes with five replacements. Keep the factory screws with the factory case so you can always reverse the swap.

Step 3: Set the factory rubber ring aside with the old case

You'll see the black rubber waterproofing ring seated around the inside edge of the factory case. Do not plan to reuse it in the metal case; it's slightly too small, and forcing it in is how you end up with a bad seal. The metal case ships with its own O-ring sized to fit. Leave the factory ring with the factory case.

Step 4: Remove the time module

Pry the time module out by a plastic-wrapped corner (I use the top right), never from the button pushers. It takes a decent amount of force and the module is built like a rock, so don't be shy. Set it aside.

Step 5: Remove the faceplate

Flip the case over and give it a good shake rather than digging with tweezers; there isn't much room between the faceplate and the glass, and a scratch on the inside of the glass can't be fixed. The faceplate drops out.

Step 6: Move your band to the metal case

The metal case fits the original band, and also opens the door to any 18mm band if you want to complete the upgrade. Swap the band over now, before the internals go in, so you're not flexing a fully assembled watch.

Step 7: Install the included O-ring in the metal case

Take the O-ring that came with the metal case and seat it in the middle case. Work it in evenly with your fingers and make sure it sits flat all the way around with no twists. This ring plus backplate pressure is the entire water seal, so give it ten careful seconds rather than two rushed ones.

Step 8: Dust removal

This step is identical to the filter mod and just as important, because the metal case's new glass will happily showcase every speck you leave behind. Shape a point of dust removal putty and use small, deliberate taps on the inside of the new glass, both sides of the faceplate, and the module face. Strong light and a dark background make the dust visible. Once everything is clean, move quickly; the longer parts sit out, the more dust lands on them. The full technique is in Step 9 of the filter guide.

Step 9: Install the faceplate and time module

Drop the faceplate into the metal case, then press the time module in with your fingers. Before committing, flip the watch over and check for dust one more time; it's normal to spot a speck and repeat the previous step.

Use the tweezers to confirm each of the four button levers on the sides of the module is seated behind the button pushers. Pull any unseated lever inward until you hear the small click. Typically two or three need it.

Step 10: Reinstall your factory backplate with the included screws

Confirm the O-ring is still seated flat, dust it if needed, and set your original backplate on the metal case. Screw it down with the five included replacement screws (remember, the factory screws don't fit), going corner to opposite corner for even pressure: top right, bottom left, top left, bottom right. Don't overtighten.

Step 11: Test the buttons

Test every button. If they all click and respond, congratulations, your Royale just gained real wrist presence.

Troubleshooting

A button doesn't click or respond

A button lever isn't seated behind its pusher. Open the back up and redo the lever check in Step 9. This is the most common case-swap hiccup and takes two minutes to fix.

Dust visible under the new glass

Reopen, pull the faceplate, and repeat the putty routine from Step 8. Nothing is glued, so this costs you minutes, not parts.

The backplate doesn't sit flush

Either the O-ring is twisted or pinched somewhere around its groove, or the module isn't fully pressed in. Lift the backplate and check the ring first; it should lie flat all the way around.

AE-1200 Metal Case FAQ

Is the watch still water resistant after the case swap?

The seal comes from the O-ring compressed by the backplate, and the metal case ships with an O-ring sized for it. Installed carefully with even screw pressure, it seals the way the design intends, but as with any watch opened outside a pressure-testing environment, the factory rating is no longer guaranteed. I treat modded watches as splash-proof rather than swim-proof.

Why can't I reuse the factory rubber ring?

It's slightly too small for the metal case. It might seem to fit if you stretch it in, but a stretched, undersized ring is a compromised seal. Use the included one.

Do I need to buy new screws?

No, five replacement screws come with the case. You do need to use them, though; the factory screws don't fit the metal case.

Does my original band work with the metal case?

Yes. It fits the original band, and it also accepts standard 18mm bands if you want to pair the metal case with a leather or metal strap.

Can I combine the metal case with a filter mod?

Absolutely, and it's my favorite combination: do the filter mod while the watch is already apart at Step 5, then continue the case swap from Step 6. One disassembly, two upgrades.

What's Next

Since the watch is coming apart anyway, this is the perfect moment to change the screen color too: my gel filter kits drop in during the same disassembly, and the step-by-step filter mod guide covers exactly where the tape goes. Add decals or a leather strap and the only Casio part left visible is the module itself. Or, if you'd rather wear one than build one, my finished custom Royales can be built on the metal case.
